Guide to the MSP430FR5969 LaunchPad (MSP-EXP430FR5969)

The MSP-EXP430FR5969 LaunchPad shines as an ultra low power platform for projects. The board has 64kB of FRAM memory which enables extremely low power consumption, non-volatility, and fast write cycles.

This hardware is open source! Get the design files from TI: HERE

Drivers may or may not be required in order to start using this LaunchPad. Download and open Energia on your system. Connect your LaunchPad to your computer over USB. Select MSP430fr5969 under Tools > Board, and select the correct serial port under Tools > Serial Port. If you don’t see a selectable serial port, you likely have a driver issue.

Installing the drivers

If you have not already done so, follow the instructions for your operating system to install the drivers here:

Pin Map

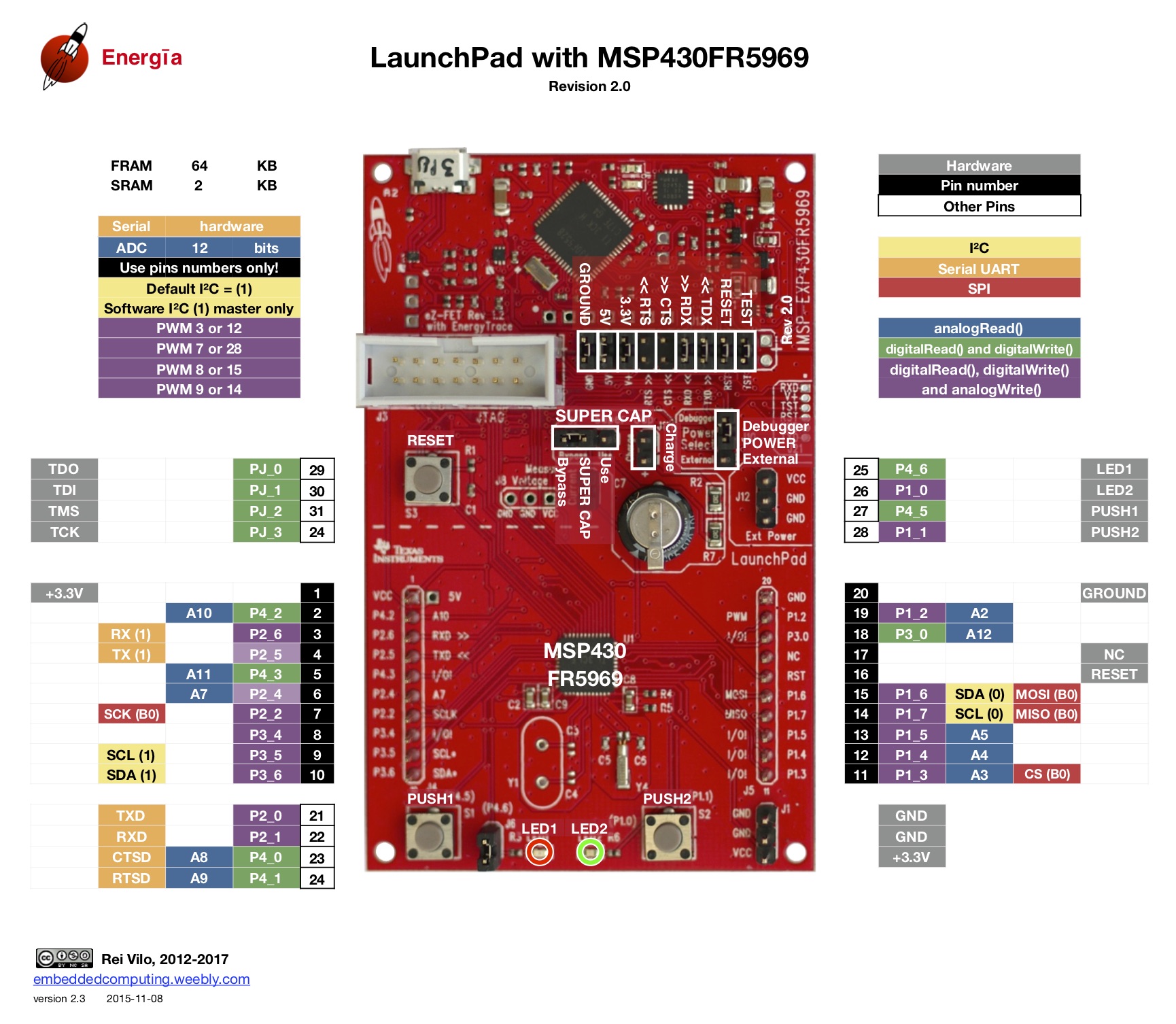

The following diagram shows the complete pin map for the MSP430FR5969 LaunchPad in Energia. Click the image to enlarge.
