The EK-TM4C123GXL LaunchPad is a very capable board with a 32-bit 80MHz ARM Cortex-M4F processor. It has many peripherals so it’s possible to do some pretty high performance applications. It also has a very bright RGB LED.
This hardware is open source! Get the PADS design files from TI: HERE
Drivers may or may not be required in order to start using this LaunchPad. Download and open Energia on your system. Connect your LaunchPad to your computer over USB. Select EK-TM4C123GXL under Tools > Board, and select the correct serial port under Tools > Serial Port. If you don’t see a selectable serial port, you likely have a driver issue.
Drivers may or may not be required in order to start using this LaunchPad. Download and open Energia on your system. Connect your LaunchPad to your computer over USB. Select EK-TM4C123GXL under Tools > Board, and select the correct serial port under Tools > Serial Port. If you don’t see a selectable serial port, you likely have a driver issue. If you have not already done so, follow the instructions for your operating system to install the drivers here:

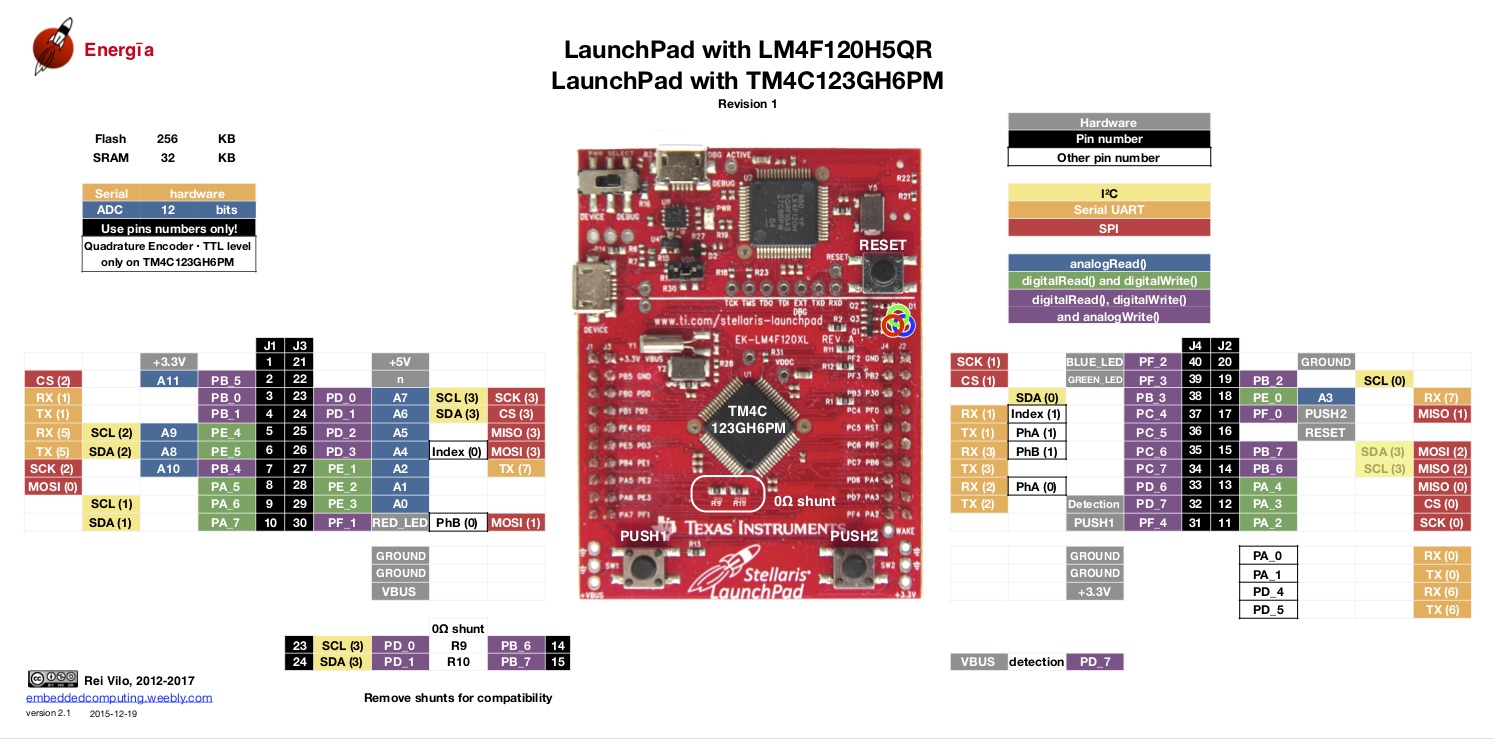

Below is the pin map for the EK-TM4C123GXL LaunchPad. Click on the images to enlarge.
Corrections, suggestions, and new documentation are very welcomed. They can be contributed to the energia website repository on Github.
The text of the Energia getting started and reference guides are licensed under a Creative Commons Attribution-ShareAlike 3.0 License. The Energia reference is based on the Wiring/Arduino reference. Code samples in the guide are released into the public domain.
Energia sketches are C/C++ based and compiled with the open-source compiler MSPGCC or arm-gcc-none-eabi. The Energia language comes from Wiring. The Energia environment is based on Processing and includes modifications made by Wiring and Arduino.
