Guide to the Stellaris LaunchPad (EK-LM4F120XL)

Note
Stellaris LaunchPad has been discontinued by Texas Instruments, the recommended replacement is the EK-TM4C123GXL LaunchPad which has very similar specs and pinout.

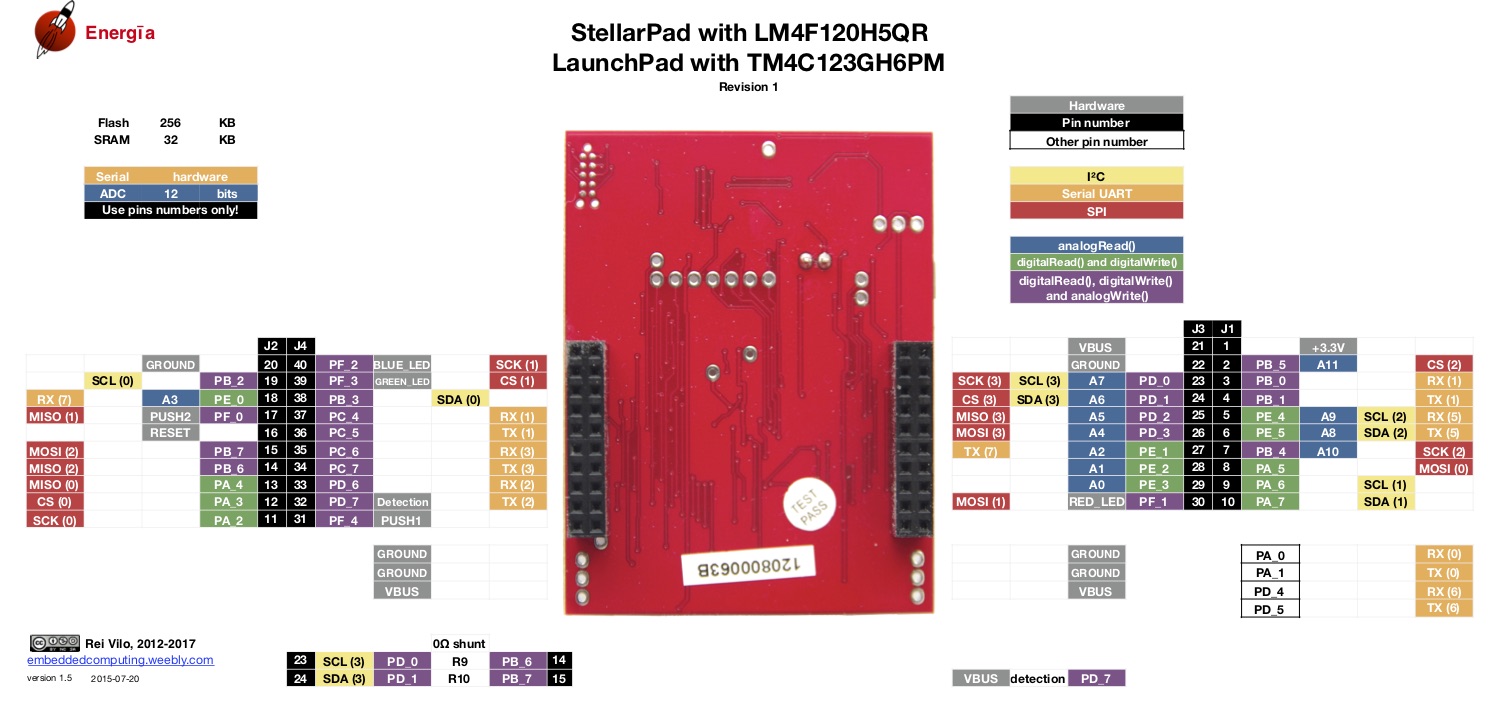

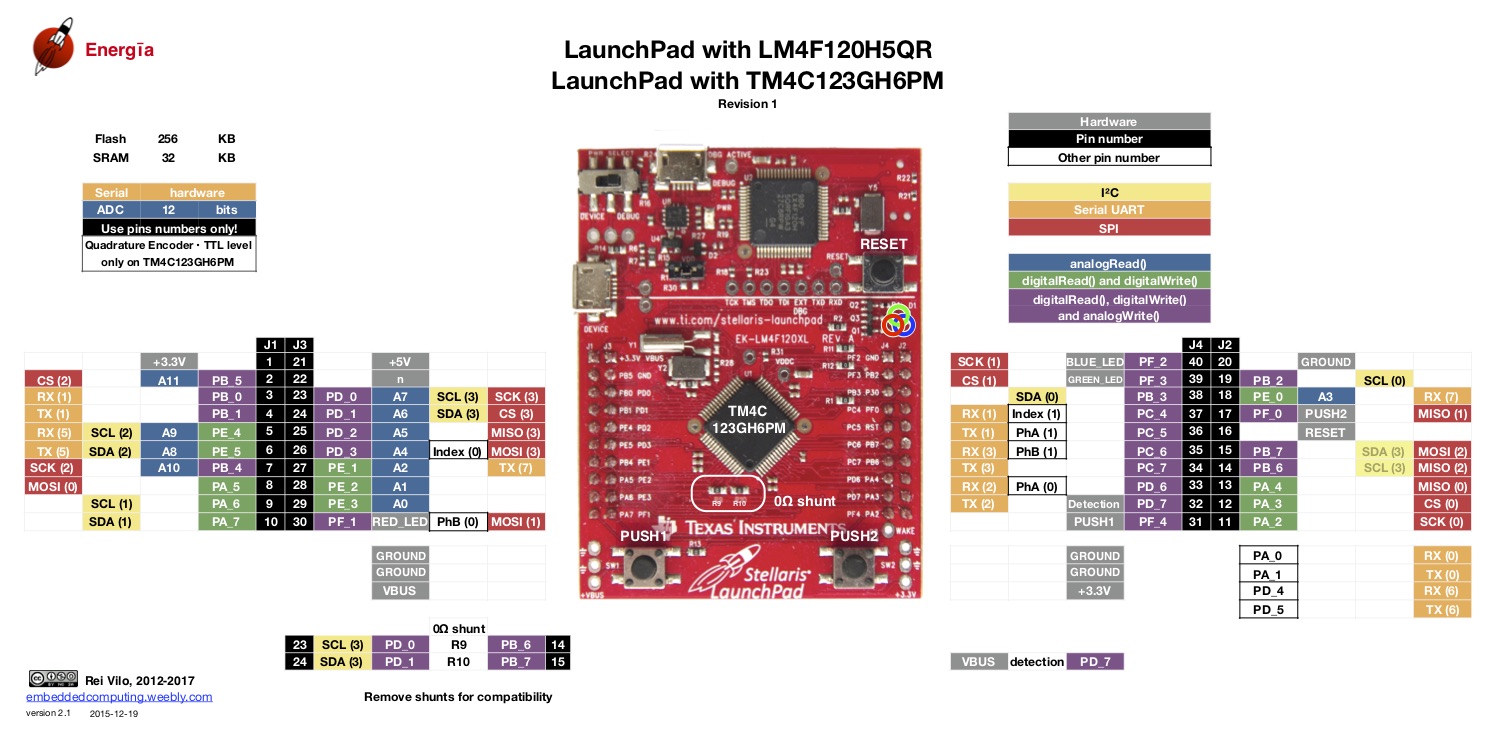

The following diagram shows the complete pin map for the StellarPad LM4F in Energia.

EK-LM4F120XL
EK-LM4F120XL
