The CC3220S-LAUNCHXL and CC3220SF-LAUNCHXL has on board Wi-Fi to easily add a wireless connection to the internet. Use the Energia WiFiMKII library to get online quickly and easily. You can also make use of many community contributed libraries that utilize the WiFi library APIs.
Energia MT is supported for CC3220. You can make use of multi-tasking in your Energia sketches and automatically enter low power modes when idle. Learn more about MT!
Energia MT is supported for CC3220SF-LAUNCHXL and CC3220S-LAUNCHXL. You can make use of multi-tasking in your Energia sketches and automatically enter low power modes when idle. Learn more about MT!
This hardware is open source! Get the design files from TI for the CC3220SF-LAUNCHXL and CC3220S-LAUNCHXL.

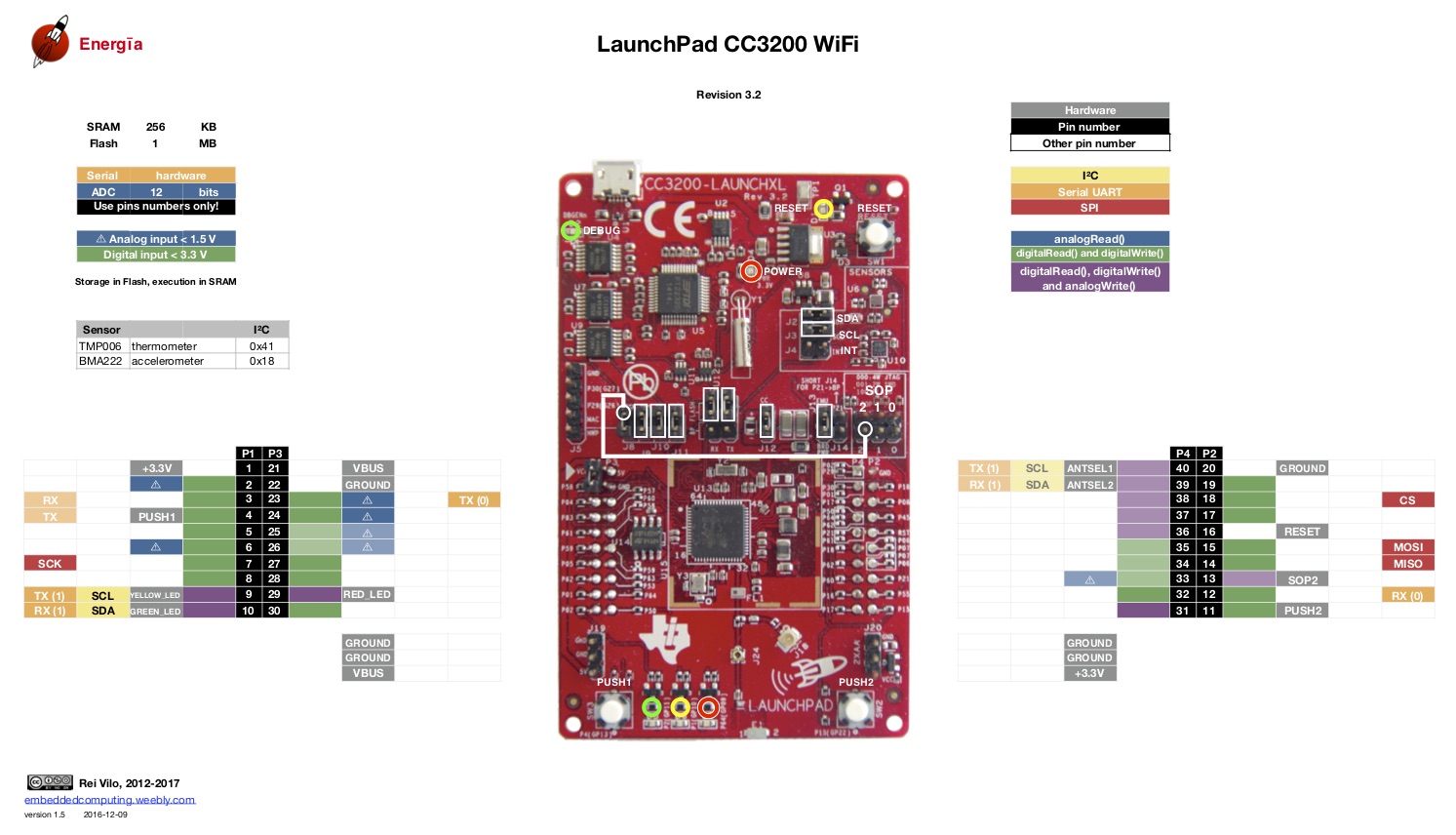

The following diagram shows the complete pin map for the CC3200S and CC3200SF LaunchPad in Energia. Note: the lighter colors indicate no connects. Click the image to view a larger version of the image.
Drivers may or may not be required in order to start using this LaunchPad. Download and open Energia on your system. Connect your LaunchPad to your computer over USB. Select CC3220SF-LAUNCHXL or CC3220S-LAUNCHXL under Tools > Board, and select the correct serial port under Tools > Serial Port. If you don’t see a selectable serial port, you likely have a driver issue. If you have not already done so, follow the instructions for your operating system to install the drivers here:
Corrections, suggestions, and new documentation are very welcomed. They can be contributed to the energia website repository on Github.
The text of the Energia getting started and reference guides are licensed under a Creative Commons Attribution-ShareAlike 3.0 License. The Energia reference is based on the Wiring/Arduino reference. Code samples in the guide are released into the public domain.
Energia sketches are C/C++ based and compiled with the open-source compiler MSPGCC or arm-gcc-none-eabi. The Energia language comes from Wiring. The Energia environment is based on Processing and includes modifications made by Wiring and Arduino.
