Guide to the Educational BoosterPack MK. 2 (BOOSTXL-EDUMKII)

Energia supports the Educational BoosterPack MK II from Texas Instruments. The BoosterPack includes basic electronic components to demo a variety of use cases with your LaunchPad. Perfect for students, beginners to electronics, and newcomers to microcontollers. Check out the BOOSTXL-EDUMKII page for more information.

This hardware is open source! Get the BOOSTXL-EDUMKII design files from TI.

For EK-LM4F120XL and EK-TM4C123GXL:

Make sure to remove R9 and R10 on the LaunchPad.

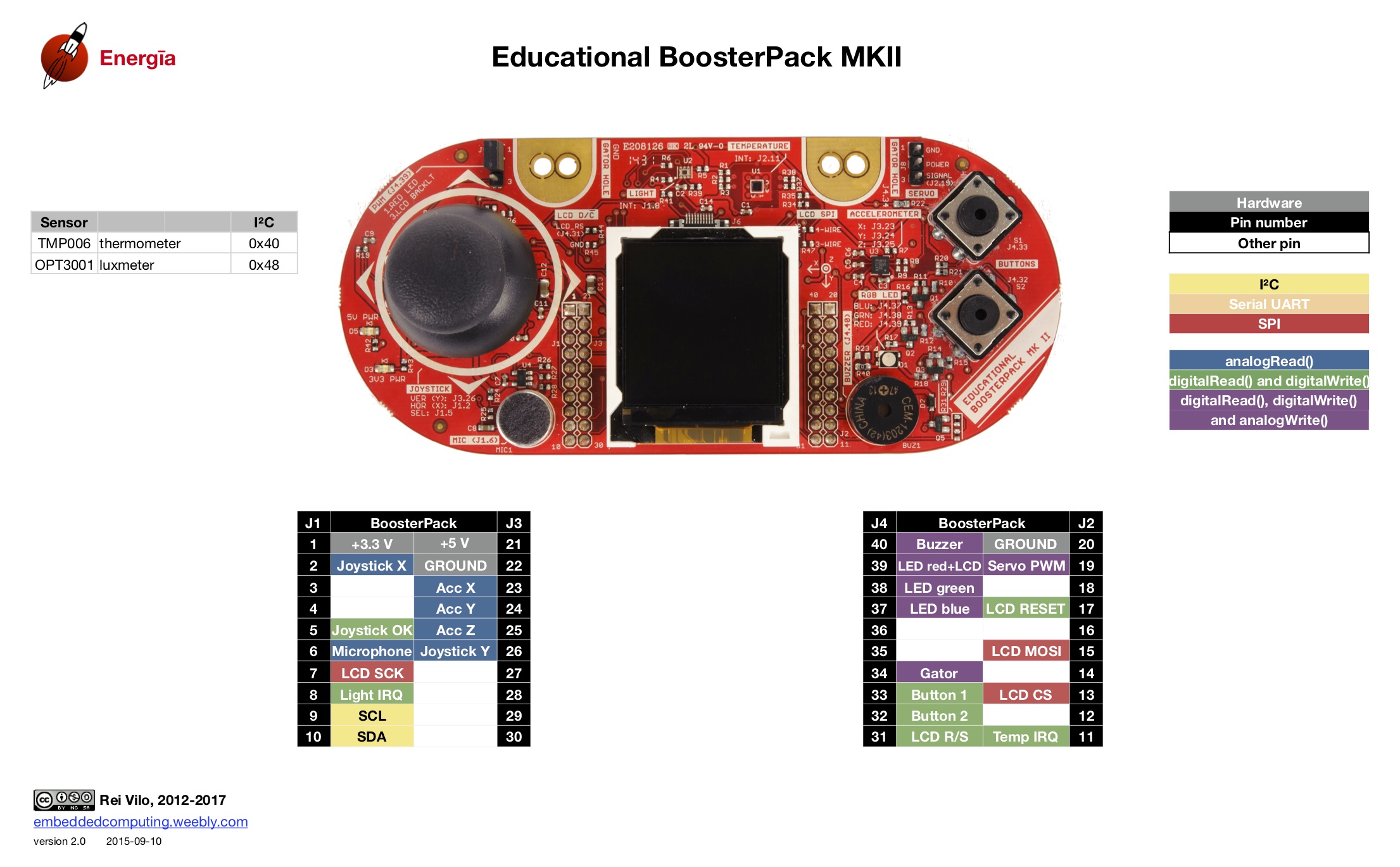

Pin Map

BOOSTXL-EDUMKII

Getting Started Video

Compatible libraries

  • EDUMKII code examples
