  Fading

  This example shows how to fade an LED using the analogWrite() function.

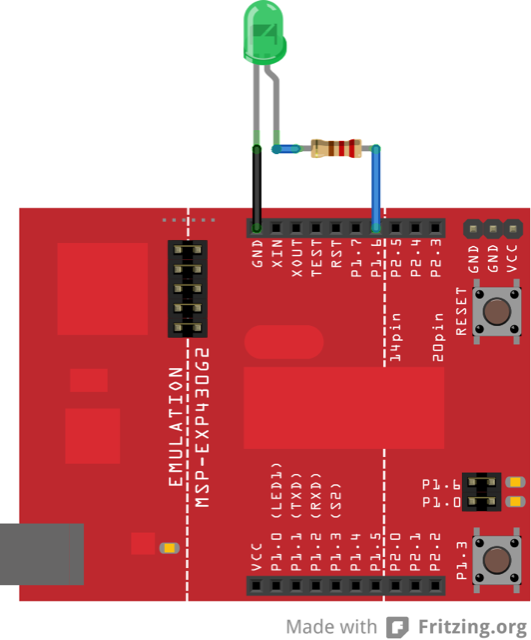

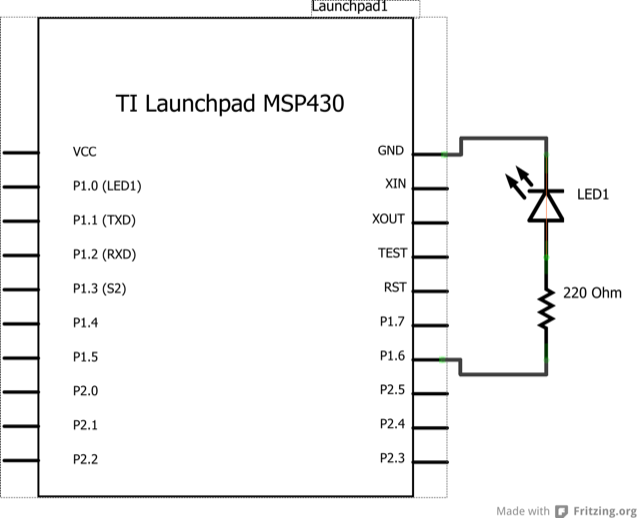

  The circuit:
  * LED attached from digital pin 14 to ground.

  Created 1 Nov 2008
  By David A. Mellis
  modified 16 Apr 2013
  By Adrian Fernandez

  This example code is in the public domain.

*/

int ledPin = 14;    // LED connected to digital pin 9

void setup()  {
  // nothing happens in setup
}

void loop()  {
  // fade in from min to max in increments of 5 points:
  for(int fadeValue = 0 ; fadeValue <= 255; fadeValue +=5) {
    // sets the value (range from 0 to 255):
    analogWrite(ledPin, fadeValue);
    // wait for 30 milliseconds to see the dimming effect
    delay(30);
  }

  // fade out from max to min in increments of 5 points:
  for(int fadeValue = 255 ; fadeValue >= 0; fadeValue -=5) {
    // sets the value (range from 0 to 255):
    analogWrite(ledPin, fadeValue);
    // wait for 30 milliseconds to see the dimming effect
    delay(30);
  }
}
